OVERVIEW

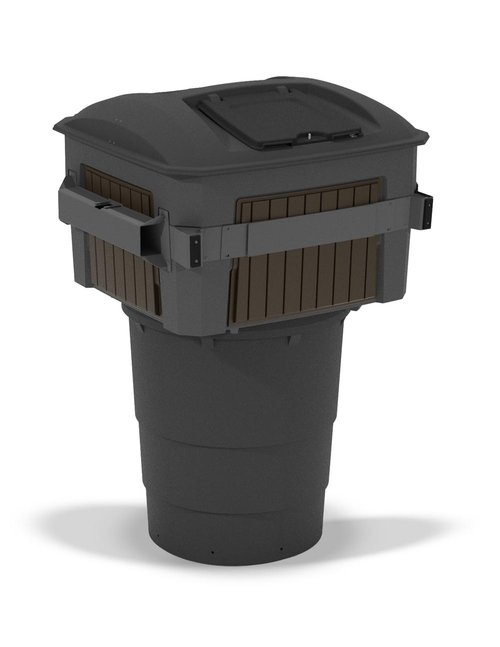

The flagship semi-in-ground front-load bin.
The Front Load Semi-In-Ground EarthBin® sinks approximately 40% of its volume underground, keeping waste cool, contained and out of sight while a familiar front-load lid stays at street level for residents and staff.
Key features
- Up to 5x the capacity of a standard wheelie bin
- Approximately 40% underground for natural cooling and odour control
- Compatible with standard front-load collection trucks
- HDPE liner (no steel)
TECHNICAL SPECIFICATIONS
Models & dimensions
Specification for EarthBin® Premium
MODEL: EB500DIMENSIONS
- Capacity / Volume
- 6.5 cu. yd. (5000 litres)
- Capacity / Weight
- 2600 lbs (1200 kg)
- Width (A)
- 80 in. (203 cm)
- Length (B)
- 70 in. (178 cm)
- Height (C)
- 55 in. (140 cm)
- Feed Height (D)
- 43 in. (109 cm)
- Depth In-Ground (E)
- 62 in. (158 cm)
- Ground sleeve above grade (F)
- 4 in. (10 cm)
- Waste Feed Opening
- 19 x 24 in. (48 x 61 cm)
- Cardboard Feed Opening
- 3.5 x 24 in. (9 x 61 cm)
- Weight (Empty)
- 750 lbs (340 kg)
CONFIGURATION
- •Rectangular container above-ground
- •Round container in-ground which can be rotated
FEED DOORS
- •Two (2) per container (front & rear)
- •Colour coded to indicate purpose (green, blue, grey, or black)
- •Lockable feed doors
LOCKS
- •Two (2) automatic Gravity Latches on main Service Lid
MATERIALS
- •Rigid roto-molded premium virgin polyethylene ground sleeve
- •Rigid roto-molded premium virgin polyethylene bin
- •Polyethylene vacuum formed (thermoformed) Service & Feed Doors with textured finish
- •Yellow zinc plated steel frame with super-durable sandtex powder paint
- •Fastened anodized aluminium signage
- •Polyethylene vacuum-formed architectural panels
OTHER
- •Lifting structure conforms to standard Front Load waste trucks
- •Manual Lid Strut on both feed doors
- •Durable, fade-resistant, non-warping lids and feed doors
- •Secondary Containment In-Ground System
- •Cardboard slot is covered and lockable
- •Patented ground sleeve anchor system
- •Protective black bumpers
- •Bin is comprised of two (2) parts
- •Architectural panels available in optional colours
